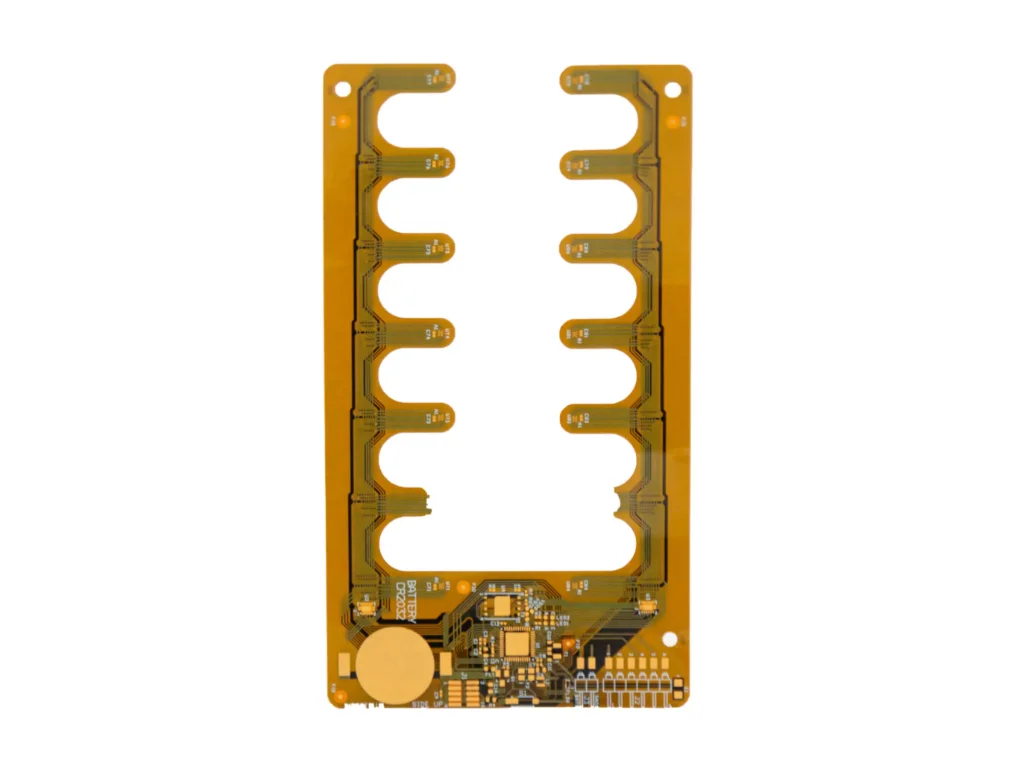

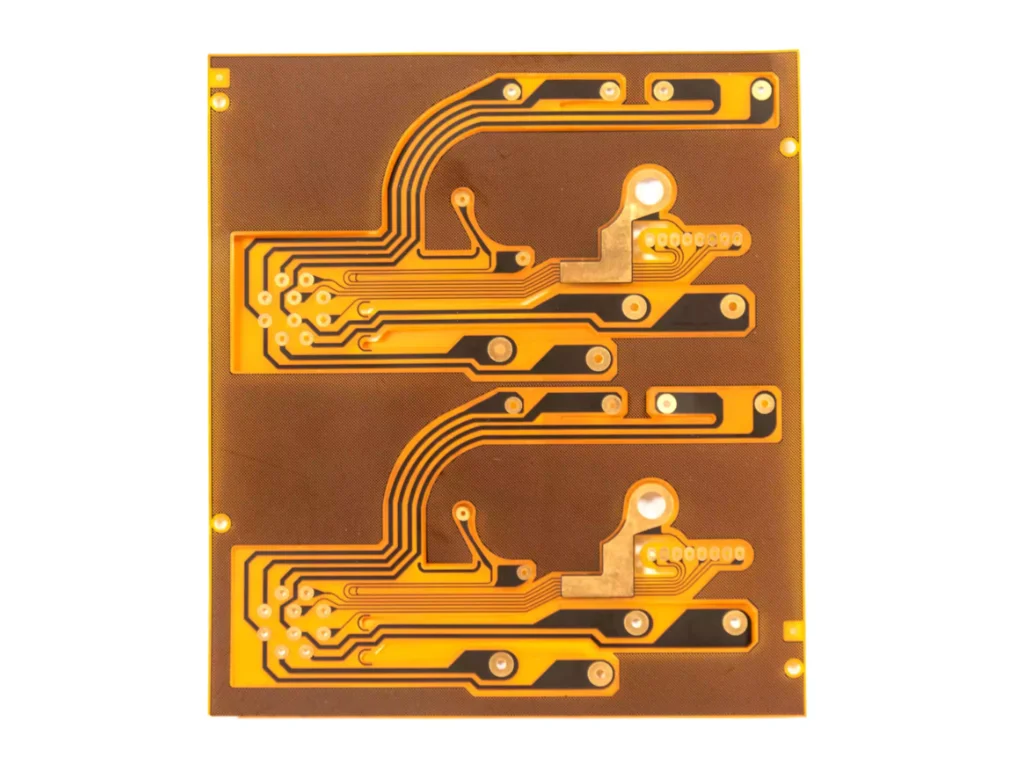

Flexible PCBs are bendable PCBs that can be produced as single-sided, double-sided, or multilayer. Demand for flexible PCBs is increasing as the devices are being designed smaller and smaller.
| Feature | Odak PCB's technical specifications |
|---|---|
| Number of layers | to 10 layer |
| Materials | Polyimide, Polyester |
| Copper thicknesses | 18 μm - 105 μm |
| Pcb thickness | 0.05 mm to 0.8 mm |
| Minimum line width | 75 μm |
| Minimum copper to copper | 75 μm |
| Maximum panel size | 250 mm x 400 mm |
| Surface finish | Lead-Free HASL, OSP, ENIG, ENEPIG, Immertion silver, Immertion gold, Hard gold |
| Minimum hole size | 0.15 mm |
When starting a new printed circuit board design, you may spend most of your time focusing on the circuit design and component selection. However, the design might translate poorly from the digital domain to physical reality without a guideline provided by your PCB manufacturer. We have prepared a guideline for you to make the right decisions at the design stage from the very beginning.
